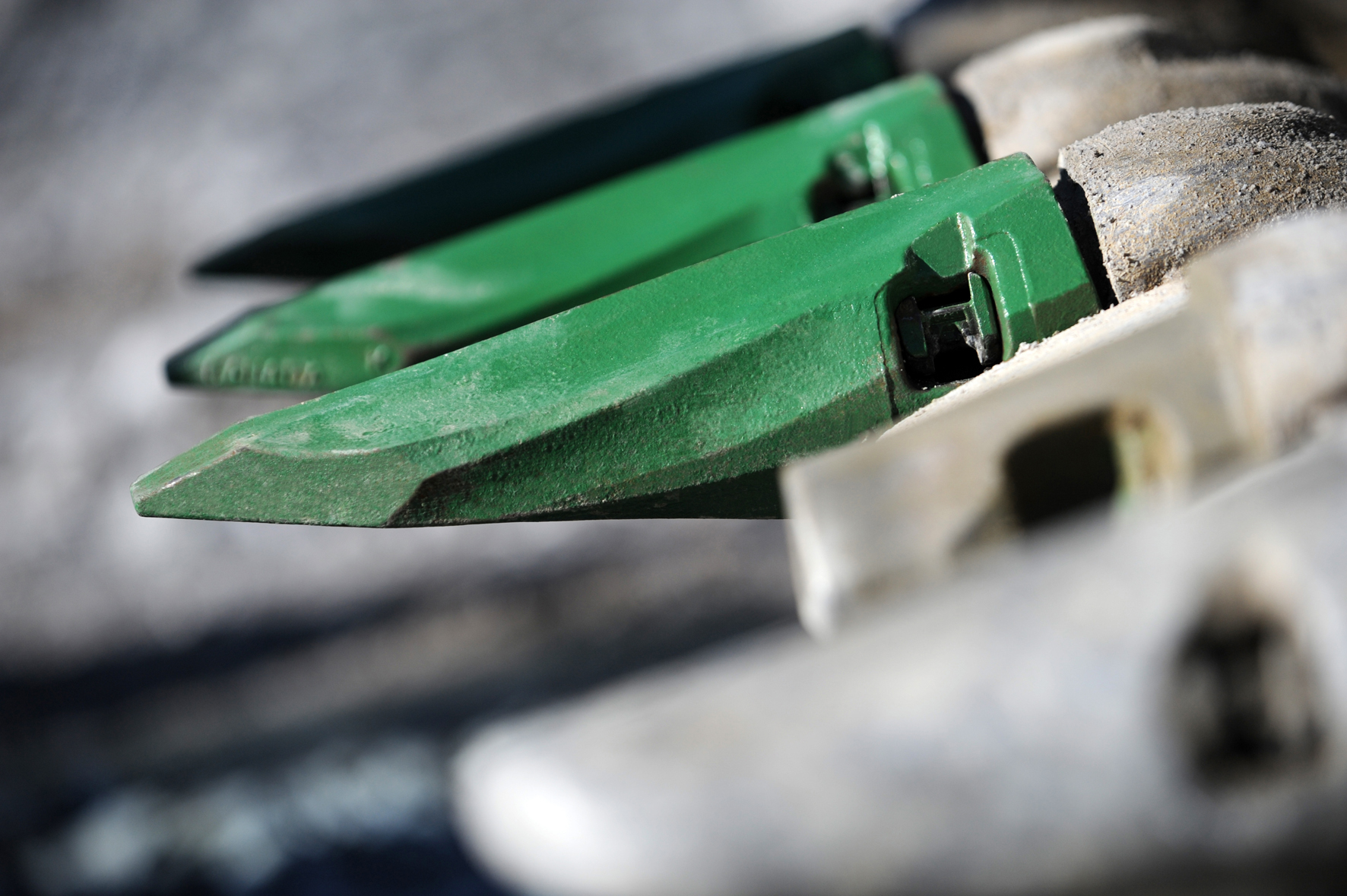

Hammerless Locking System
The integrated lock makes Ultralok a true two-piece system, reducing inventory over traditional three-piece systems.
• Integrated lock means no pins to order, lose or mismatch

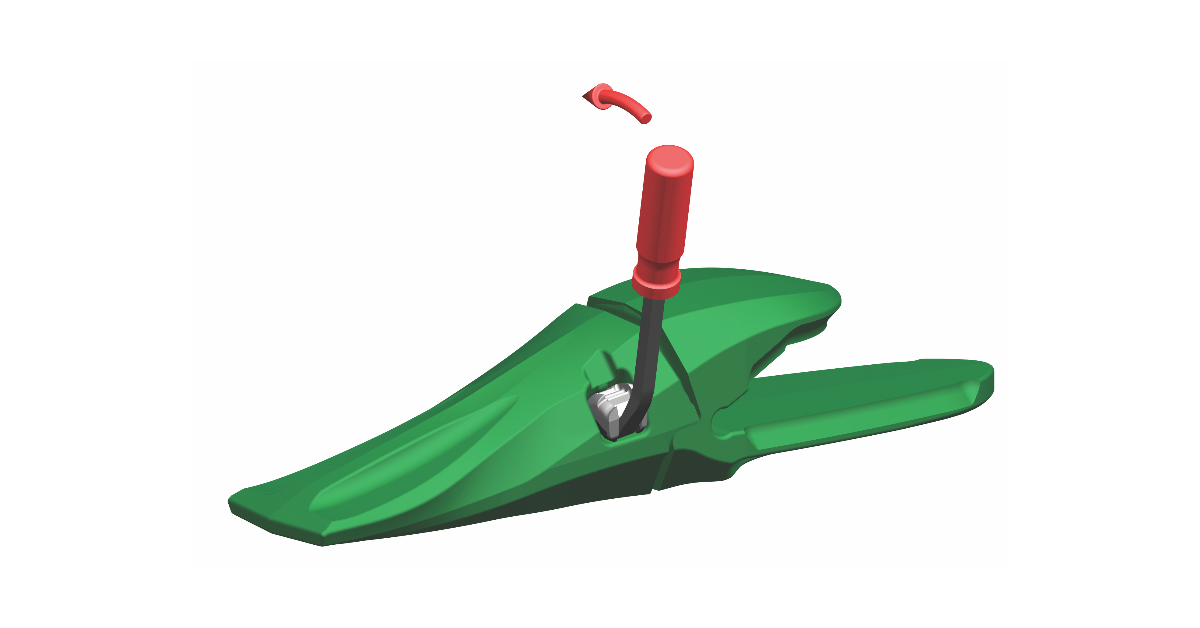

• Points are easily installed and removed with a simple pry tool
• Minimal downtime between replacements
• Hammerless and safer
• Fast field replacements – just click and dig

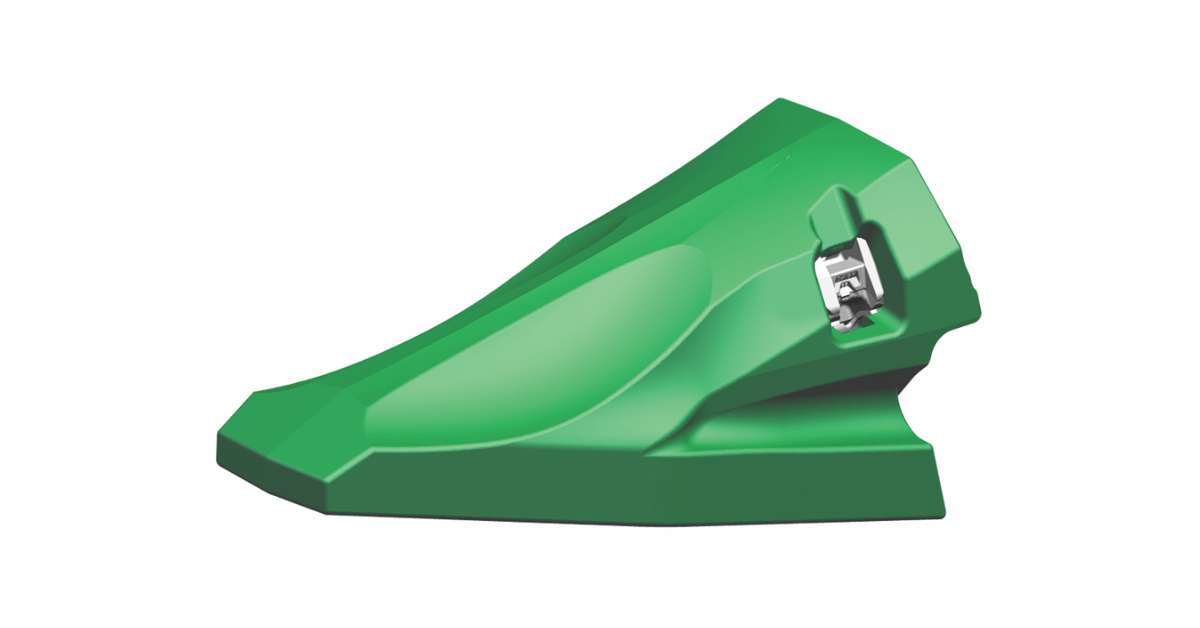

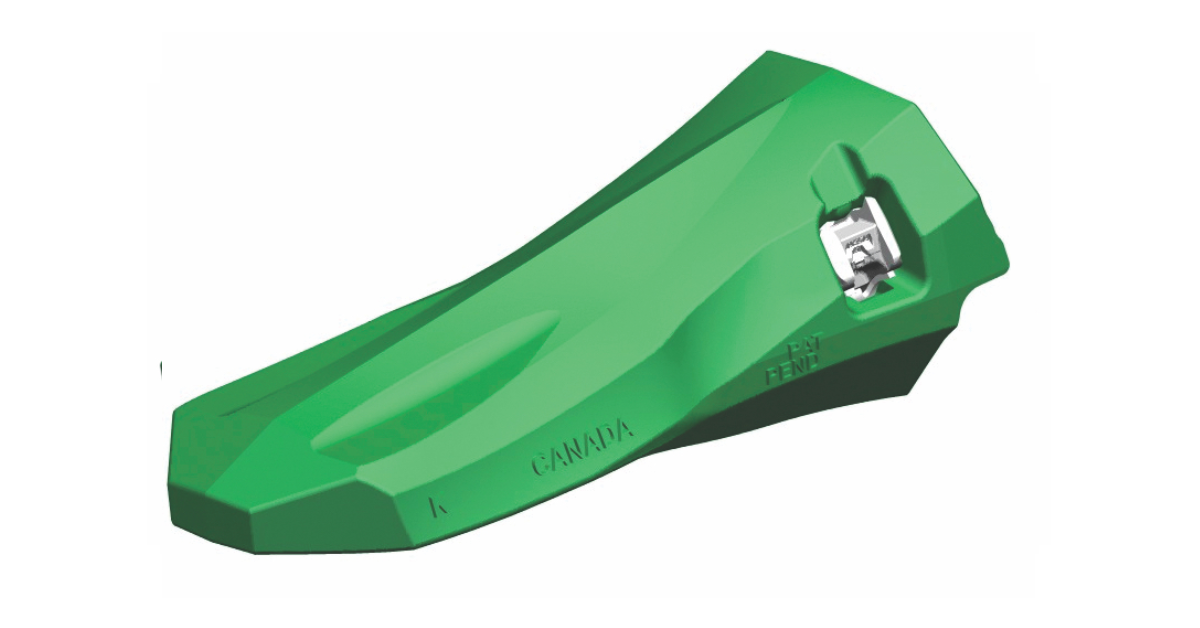

A - Abrasion
The A point is designed for optimum wear on wheel loaders working in extreme abrasion applications. The beveled tip and top contoured panel ensures excellent bucket loading. The full length bottom wear shoe provides maximum wear life and ensures a smooth floor to minimize the chance of tire damage

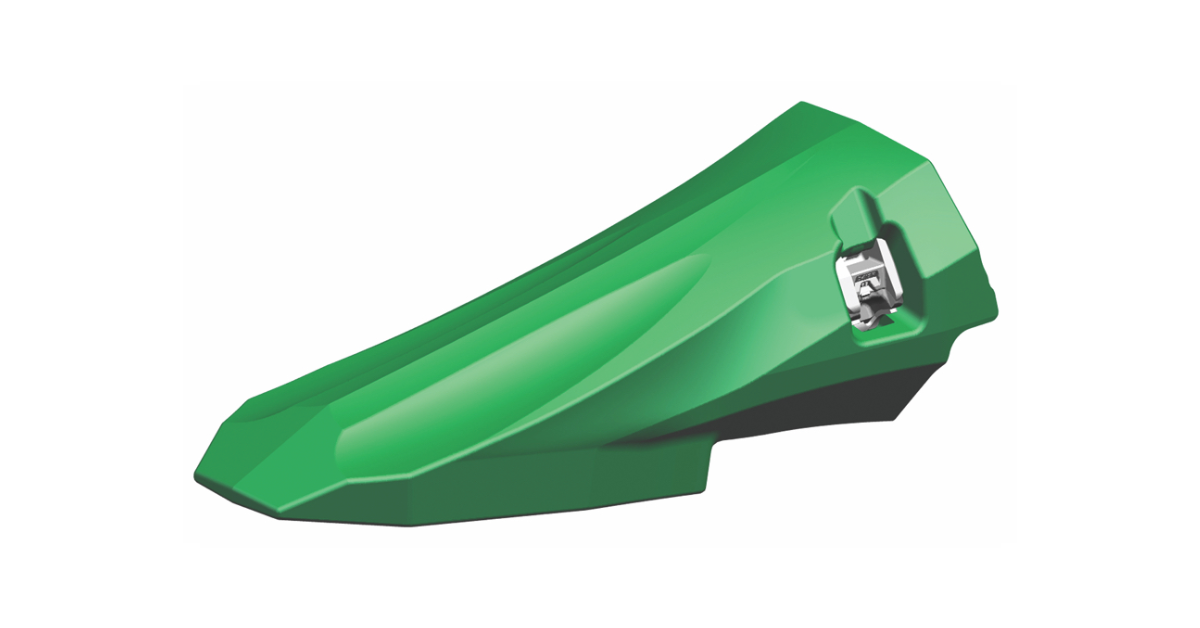

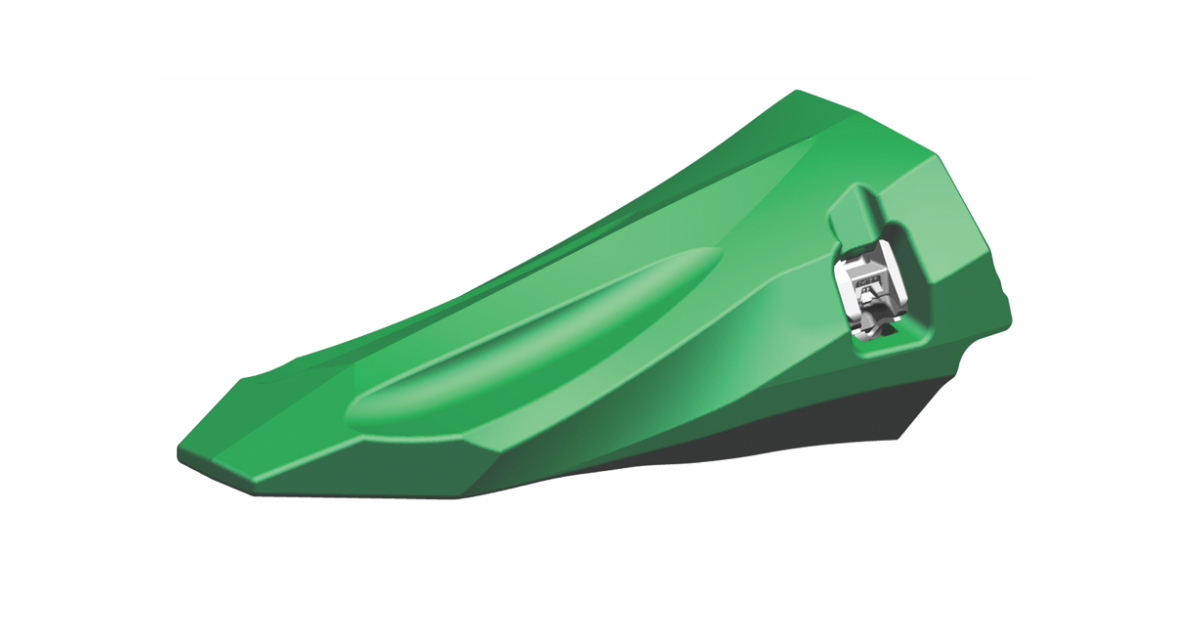

AP - Abrasion Penetration
The AP is a heavy-duty penetration point for wheel loaders with added wear metal for highly abrasive applications. The beveled tip design ensures sharpness, and the top center rib helps maintain the sharpness. An integral bottom wear shoe provides long life.
H - Heavy
The H is a heavy point for extremely abrasive applications and is primarily designed for excavators. Additional wear metal provides long point life. The heavy-duty rib and unique tear-drop relief in the bottom help to maintain sharpness as the point wears.

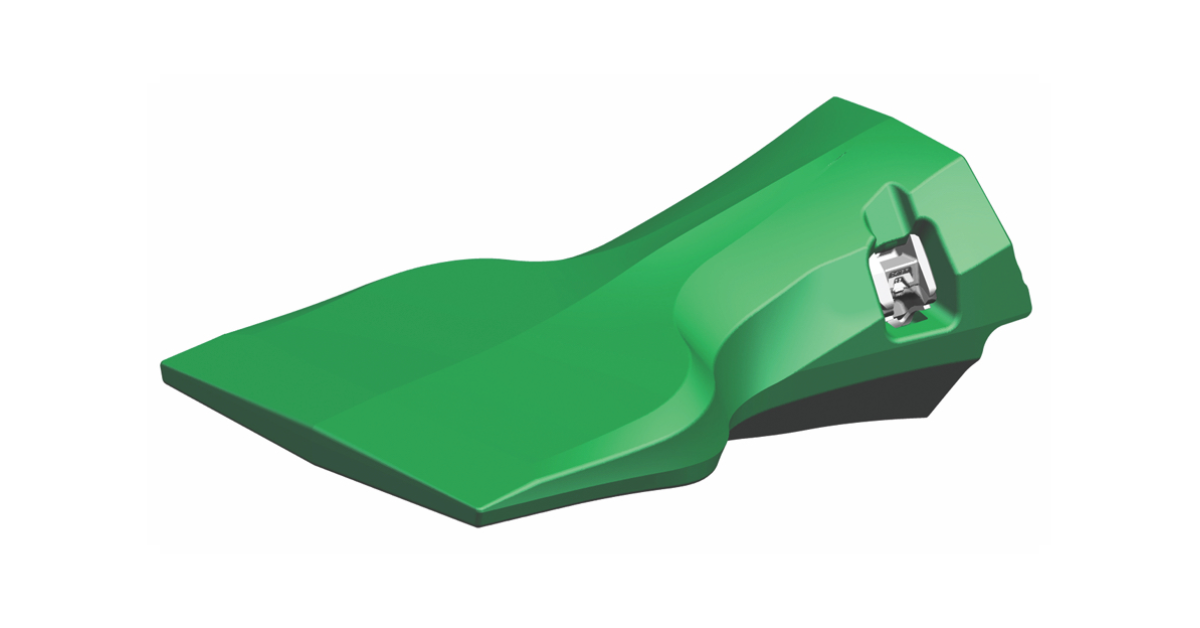

F - Flare
The F is a flared point for general purpose digging and continuous edge applications – an excellent choice for trench bottoms and foundation excavations. The wide blade maximizes bucket capacity.

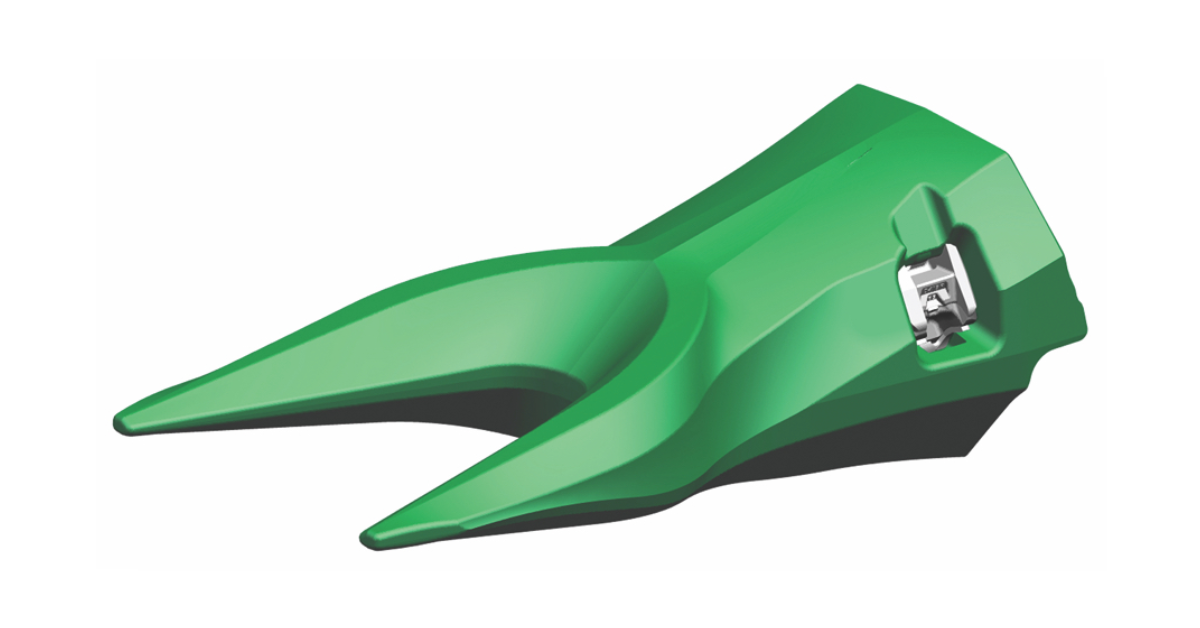

T - Twin Pick
The T is a twin pick point for maximum performance in hard to penetrate materials. The unique configuration minimizes the chance of rocks wedging between the tines; and is designed for use in the corner positions in conjunction with P style points to cut clearance for the buckets sides. The corner teeth can be switched to maximize wear life.

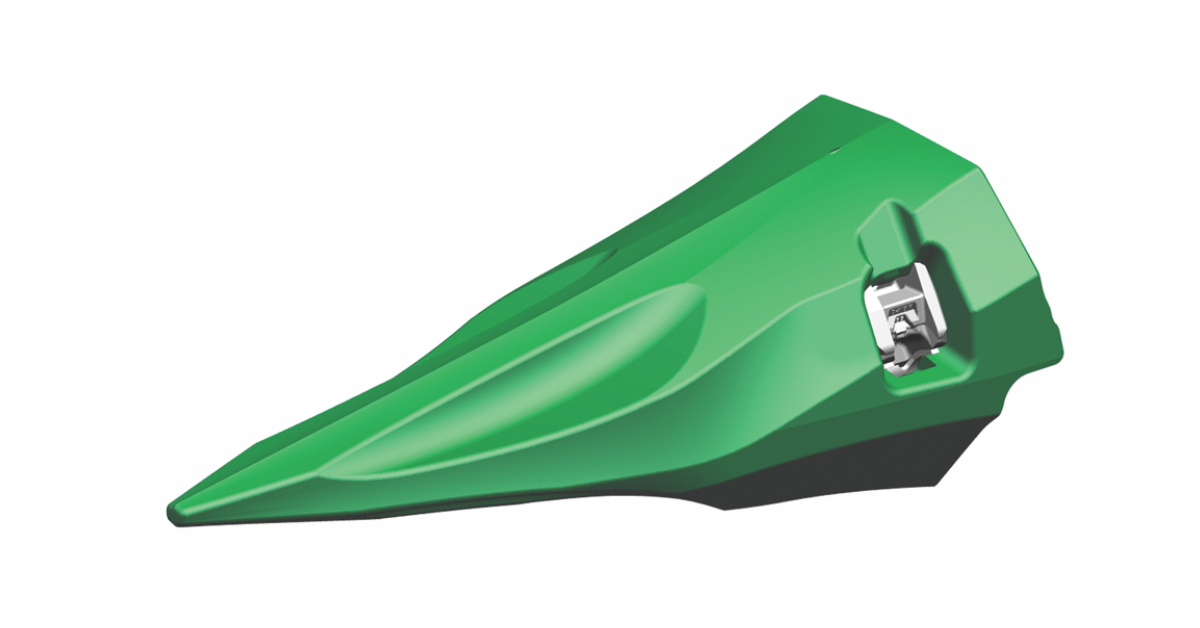

P - Pick
The P is a pick point for extremely hard to penetrate materials, and is primarily designed for excavators but can be used on wheel loaders. Top and bottom ribs provide strength and ensures the point stays sharp.
C - Chisel
The C is a chisel point primarily for use on excavators. The design provides good penetration and extra wear metal in tough applications. The heavy-duty rib and unique tear-drop relief in the bottom keeps the point sharp throughout its wear life.

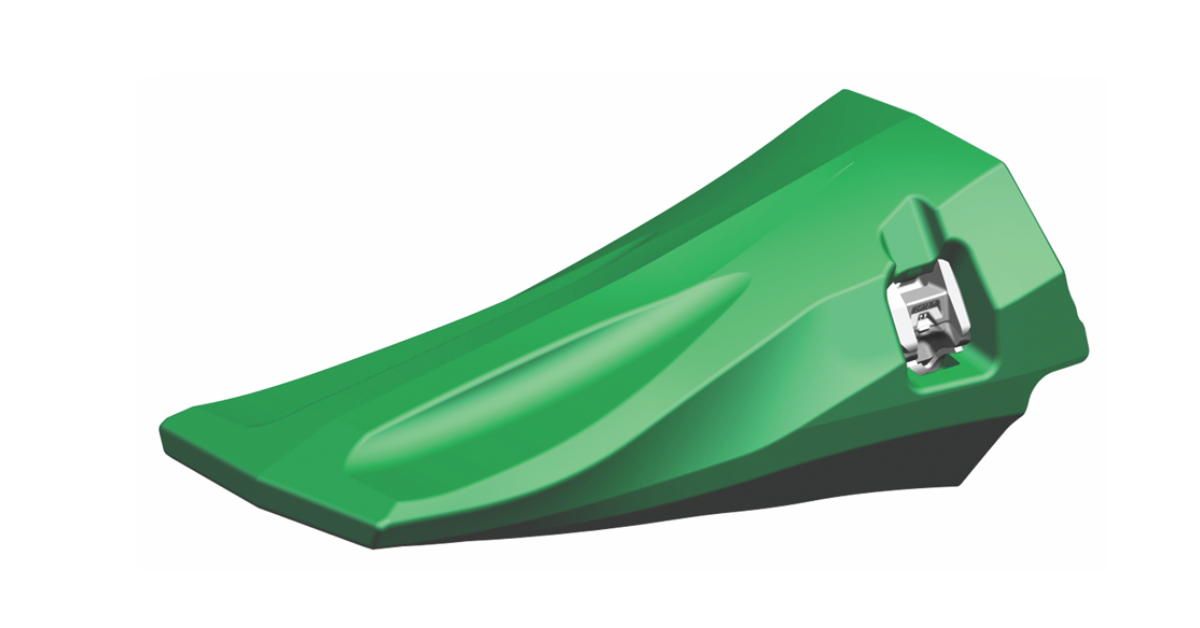

S - Standard
The S is a standard point, an excellent choice for excavators and wheel loaders in general purpose applications. Designed to wear sharp for penetration, and features a center rib for greater strength.
